Craftmate

CraftMate is a platform that uses 3D vision technology to automate surface finishing processes. With a press of a button, you can scan and construct an exact 3D model of a surface ready to be processed.



Craftmate

Get started in

3 steps

646b5a2cd6275cd968adc437 62694dff08f8f4231f5d7c97 CraftMate 1 removebg preview p 500

1. Scan

CraftMate scans and constructs a highly precise 3D model of your object or the surface to be processed.

646b5a2cd64ee4be28a3ea68 62694e8fdf1432b2c6192dde CraftMate 2 removebg preview p 500

2. Select

Define the area or path you wish to process. Select your tool and adjust parameters for your specific process.

646b5a2c3365ec0bf92e3c2a 62694e9d66adc957dc516c71 CraftMate 3 removebg preview p 500

3. Process

Let the robot do the hard work.

Automate surface processing with complete systems

CraftMate can be used for multiple applications, production needs, and materials such as wood, composite, metal, glass, and stone. Here are examples of how you are able to customize CraftMate to fit into your application with cobots and industrial robots.

641c16d5468d59a05b371130 Screenshot 2023 03 23 at 10.06.48
Light Duty – Mobile

500 x 500 mm
Cobots or industrial robots UR, Nachi and KUKA

641c1744ab2581c2f8906d36 Medium size machine 3
Medium Duty – Mobile

1700 x 1500 mm
Cobots only UR and KUKA

641c17aa02e8cc40d59aba40 Medium size machine 7
Medium Duty – Stationary

1700 x 1500 mm
Industrial robots KUKA and Nachi

641c17721506b63b2c1f18f1 Heavy duty machine v61
Heavy Duty – Duel

Up to 30 meters
Industrial robots KUKA and Nachi

Play Video

Solutions from small to large parts

CraftMate is a software platform that is designed to solve a variety of surface processing tasks, such as sanding and polishing. It is capable of working on surfaces of any shape, whether they are large or small, flat, or have complex curves.

Fully-automatic vision-based surface processes

CraftMate scans and constructs a highly precise 3D model of your object or the surface to be processed without a CAD model or heavy offline programming. The complete planning calculation only takes a few seconds even for complex surfaces and shapes. You can define a robot’s work area and configure various settings, including motion path, tool alignments, speed, orientation, and direction. Once the robot path is finished, you are ready to start.

Play Video
Play Video

Flexible automation solution to fit your production

CraftMate platform is highly customisable and can be tailored to fit your specific production needs. You can choose from different tools, robots, and setups to create the perfect solution for your application. CraftMate supports orbital sanders, die grinders, and angle grinders, making it a flexible automation solution to fit your production.

3D vision-based surface processing

640f0ccc67ef8dbab6329e68 target.2 2
Solution for high-mix and one-of-a-kind productions
640f0ccc3de5c8be6ec2e2e2 target.2 3
No need for CAD files or offline programming
640f0cb8db18eb94105661e4 target.2 4
Simulate before deployment with digital twin
640f0cce7c503325af02ed44 target.2 5
Complete planning calculation only takes a few seconds, even for complex surfaces and shapes
640f0ccda6d76c77b74be662 target.2 6
Choose from different tools, robots, and setups to create the perfect solution for your application
640f0ccd24ccc718c1ffcc5e target.2 7
Teach the robot precise movements with point-to-point and 3D-vision teaching

3D vision-based surface processing

640f0ccc67ef8dbab6329e68 target.2 2
Solution for high-mix and one-of-a-kind productions
640f0ccc3de5c8be6ec2e2e2 target.2 3
No need for CAD files or offline programming
640f0cb8db18eb94105661e4 target.2 4
Simulate before deployment with digital twin
640f0cce7c503325af02ed44 target.2 5
Complete planning calculation only takes a few seconds, even for complex surfaces and shapes
640f0ccda6d76c77b74be662 target.2 6
Choose from different tools, robots, and setups to create the perfect solution for your application
640f0ccd24ccc718c1ffcc5e target.2 7
Teach the robot precise movements with point-to-point and 3D-vision teaching
Process examples
Here is how you can use CraftMate
64954f6851b438f5fec307c0 CleanShot 2023 06 23 at 09.52.55 p 500

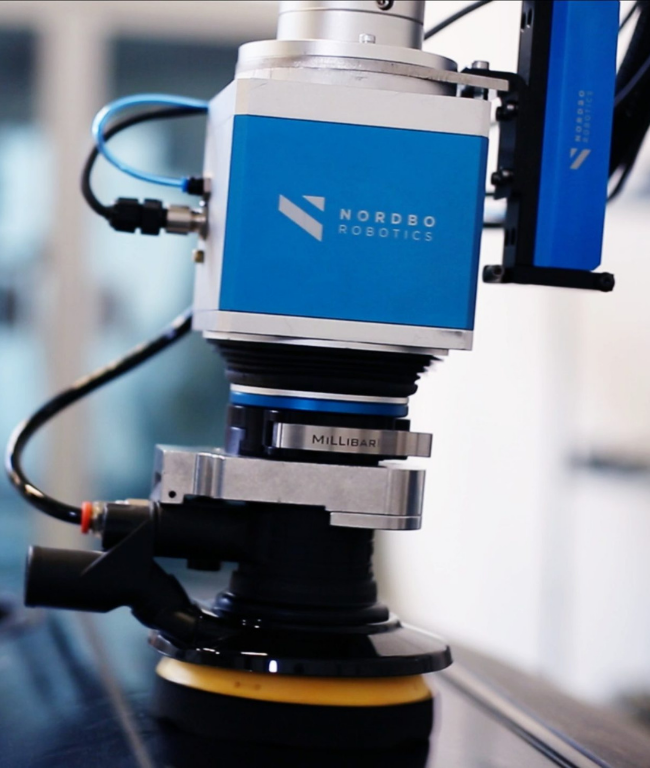

Sanding

641b09ccf9741f391e4caee3 maxresdefault 1

Grinding

641b0aab163434f831b7d90c maxresdefault 2

Polishing

Supported Robots

64229ebf8b8e35d90590618e Mimic 4
644b7860a1ed9c97b99f49cd universal robots vector logo
641c4d5b0c6270f666474588 63c94cd4ab062f1dd2ca0850 Skaermbillede 2023 01 19 kl. 14.07.35 p 800
62836013deed55b7f7b32b77 Nachi
644b777d7a95edc607ecddd6 Kuka small
644b78d4837f48c7b7e4d22c 628360ff7e9764647d152090 KUKA
6598094205070c67db97d41a Sanding.00 00 40 06.Still001 p 1080
6598098a129471ef5f7d17a2 Fanuc logo.svg p 2000

Supported Cameras

6447c712748491312d8a5c24 nordbocamera
NRV-D435
644679df89b1627151d001dd zivid m70 p 1600
Zivid M70 & L100
644679de2cff1c332a789027 ensenso N35
Ensenso N35-602-16-BL
644679de5122a1b582bf1338 realsense
Intel Realsense D435i

See customer cases
